Roland RT-30H Acoustic Drum Trigger SINGLE

With exceptional trigger sensitivity, ultra-quick installation, and compatibility with the latest drum hardware, the streamlined RT-30 series sets a new standard for anyone wanting to explore hybrid drumming. Easy to install, the single-trigger RT-30H attaches securely to the metal rim of nearly any standard drum. The newly developed self-guided mount automatically sets the sensor in the optimum position against the drumhead, with no fussy mechanical adjustment needed after mounting.

• Advanced head-based trigger device for playing electronic sources from acoustic drums
• Compatible with Roland’s TM-2 Trigger Module, TD-series V-Drums sound modules, and SPD-series percussion pads

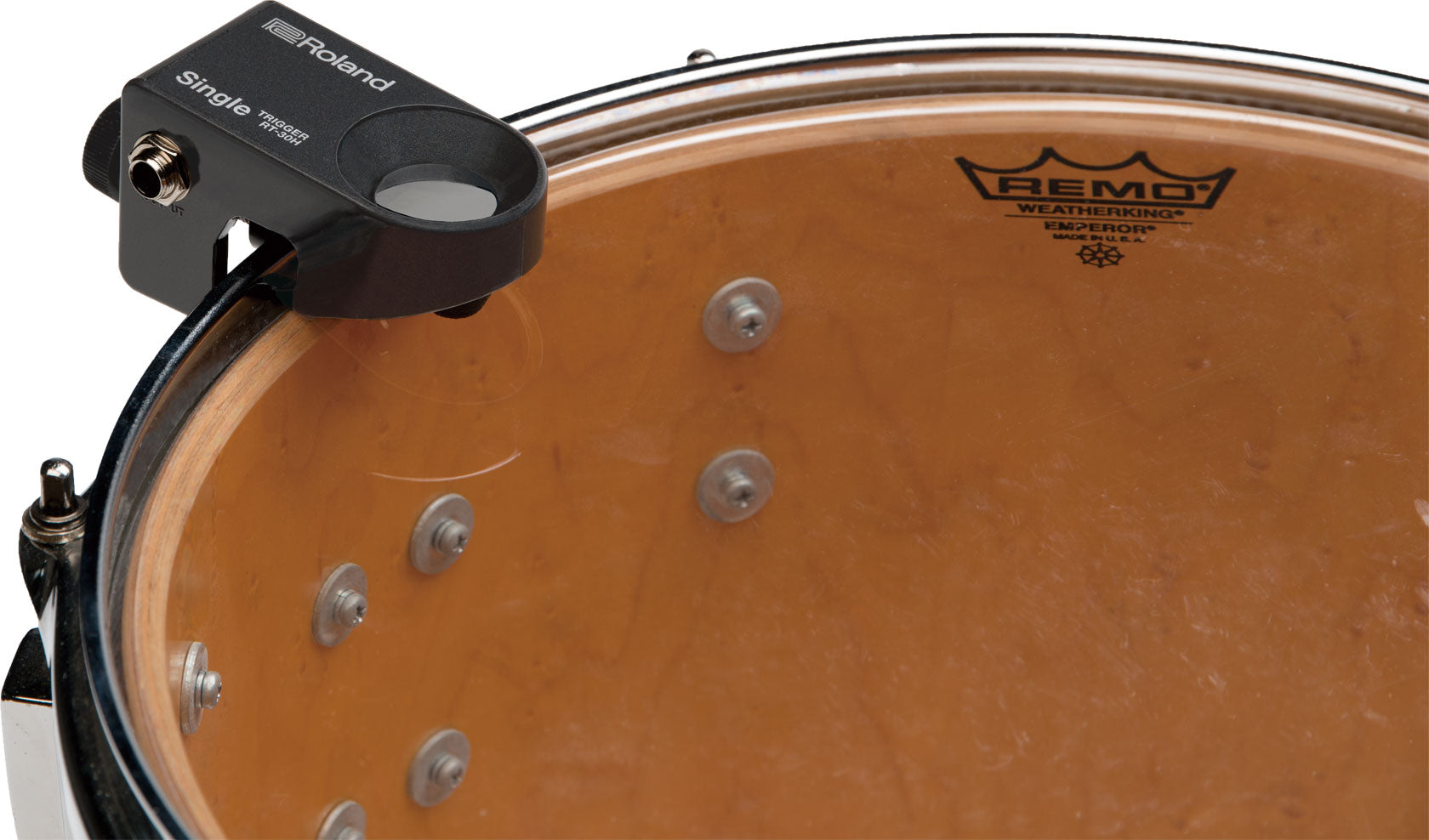

• Installs on nearly any metal drum hoop, including the latest inward-curved hoop styles
• Newly developed self-guided mount makes installation quick and easy
• 10 mm lower in profile than previous designs for increased playing comfort

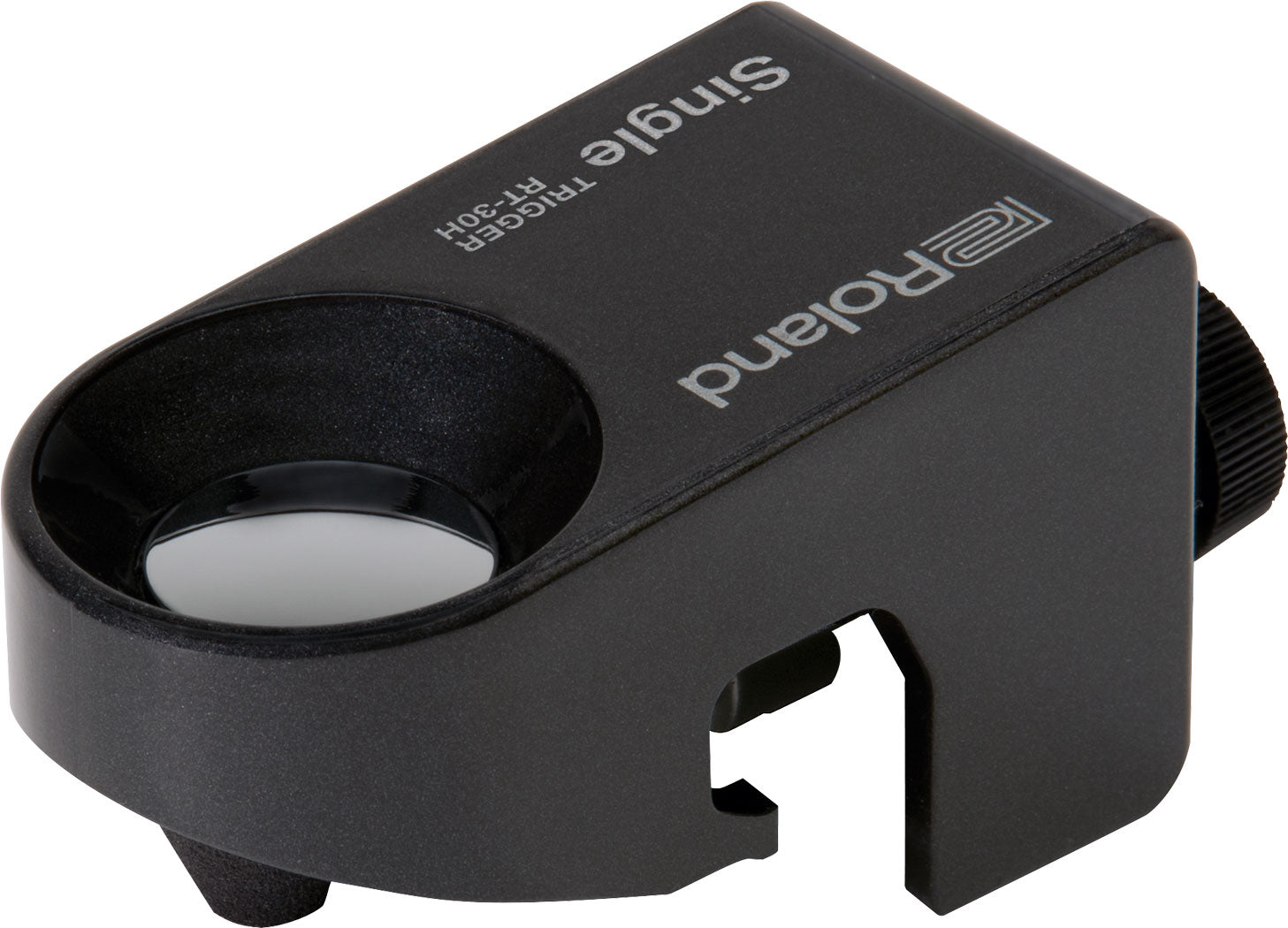

• Durable fiberglass-reinforced ABS body and secure mounting mechanism for dependable operation

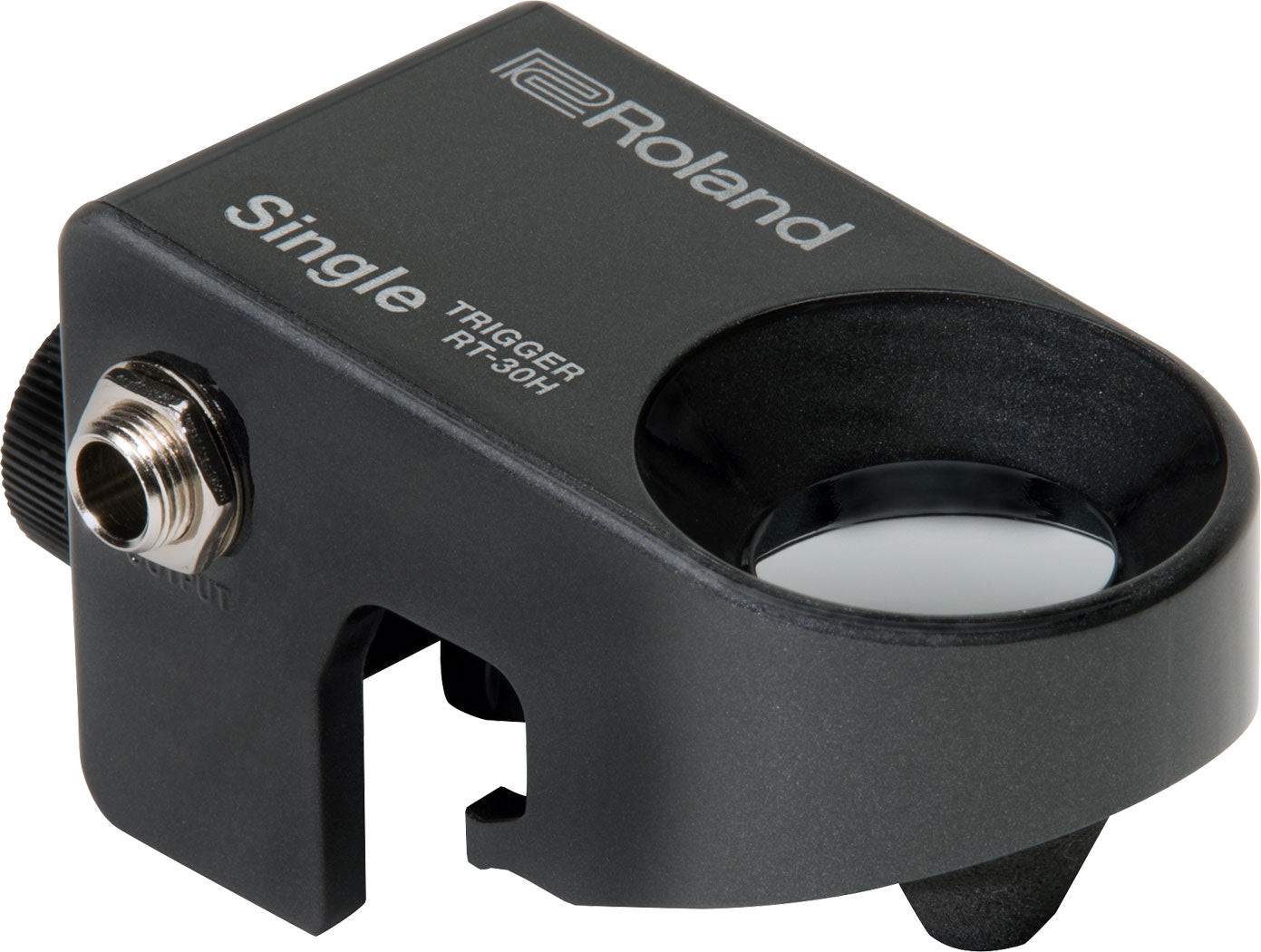

• Side-mounted trigger output jack for improved cable management
• TRS connection cable included

Trigger

1 (Head)

Connector

Output Jack (1/4-inch Phone Type)

Accessories

Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Stereo Cable (3.5 m, 11.48 ft)

Guide for Installation

Rim Height 8mm-13mm (0.31 inch - 0.51 inch), Rim Thickness (Max): 12mm (0.48 inch)
Inward-Curved Allowance:5mm (0.20 inch) * in the case of Inward-Curved hoop

Size and Weight

Width

39 mm
1-9/16 inches

Depth

112 mm
4-7/16 inches

Height

45 mm
1-13/16 inches

Weight

67 g
0 lbs. 3 oz.
