Roland RT-30K Acoustic Drum Trigger KICK

With exceptional trigger sensitivity, ultra-quick installation, and compatibility with the latest drum hardware, the streamlined RT-30 series sets a new standard for anyone wanting to explore hybrid drumming. Developed specifically for use on bass drum, the RT-30K provides fast and accurate triggering in a robust unit that’s simple to install. The newly developed self-guided mount automatically sets the sensor in the optimum position against the drumhead, with no fussy mechanical adjustment needed after mounting.

• Advanced trigger device for playing electronic sources from an acoustic bass drum
• Compatible with Roland’s TM-2 Trigger Module, TD-series V-Drums sound modules, and SPD-series percussion pads

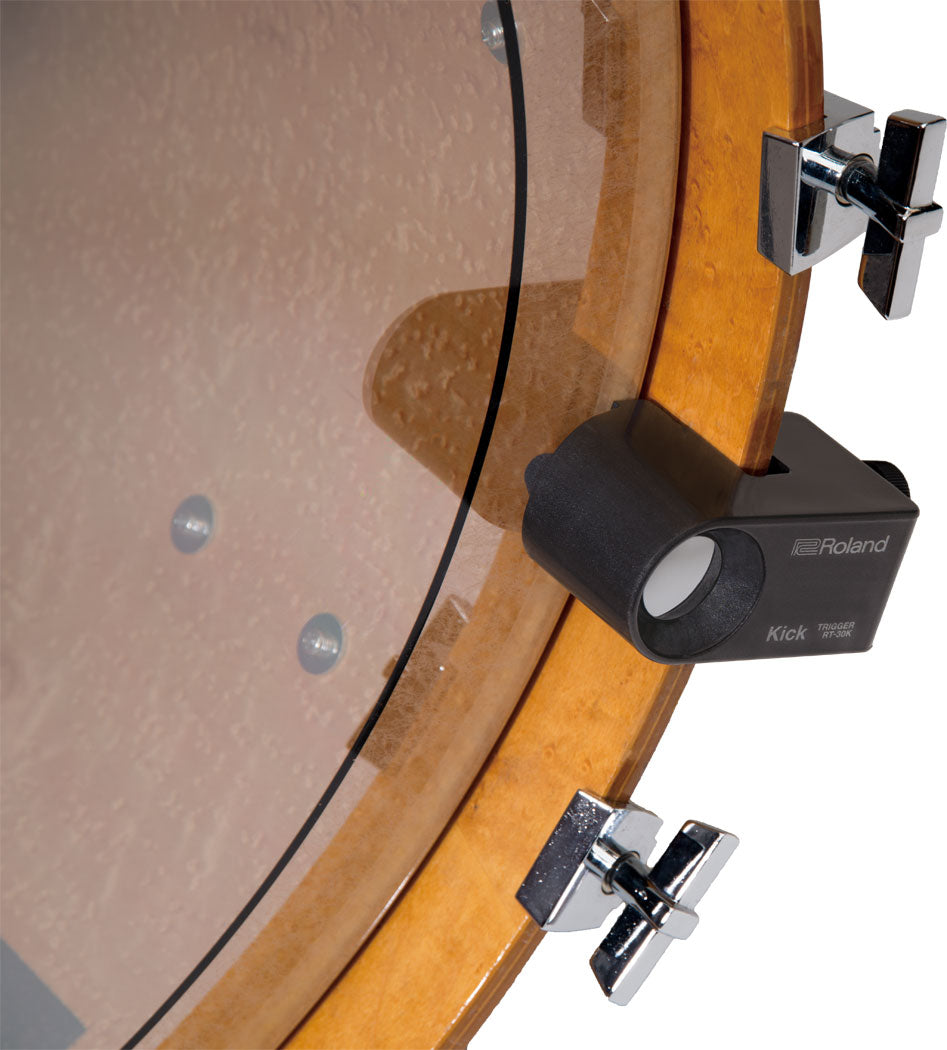

• Newly developed self-guided mount makes installation quick and easy
• Durable fiberglass-reinforced ABS body and secure mounting mechanism for dependable operation
• Protective grip prevents marring of wood bass drum hoops
• TRS connection cable included

Trigger

1 (Head)

Connector

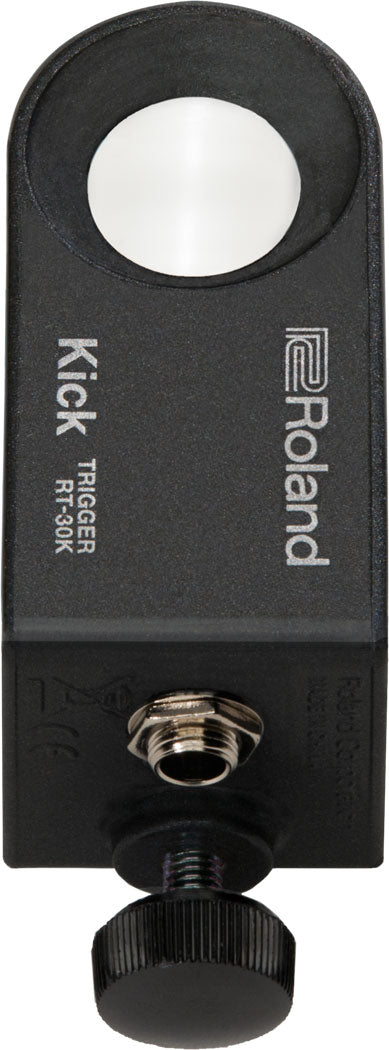

Output Jack (1/4 inch Phone Type)

Accessories

Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Stereo Cable (3.5 m, 11.48 ft)

Guide for Installation

Rim Height: 30–36 mm (1.18–1.42 inch)
Rim Thickness (Max.): 12 mm (0.48 inch)

Size and Weight

Width

38 mm
1-1/2 inches

Depth

111 mm
4-6/16 inches

Height

62 mm
2-1/2 inches

Weight

95 g
0 lbs. 4 oz.
