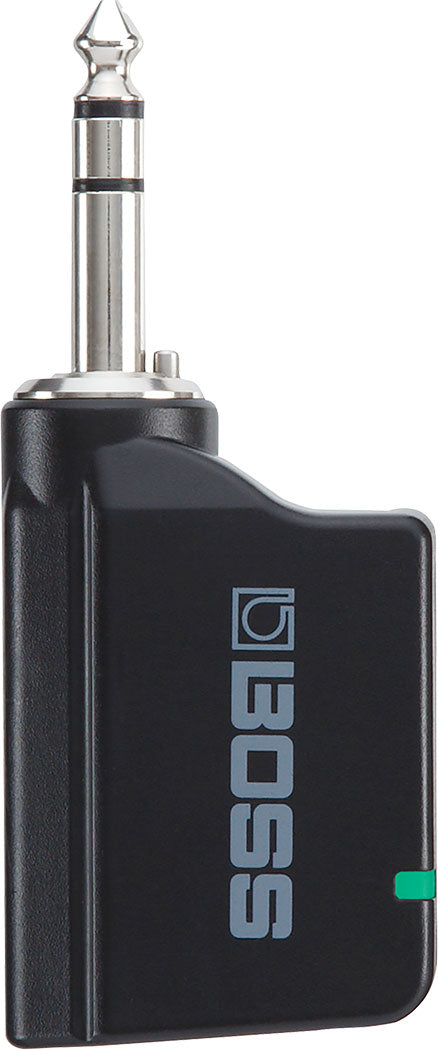

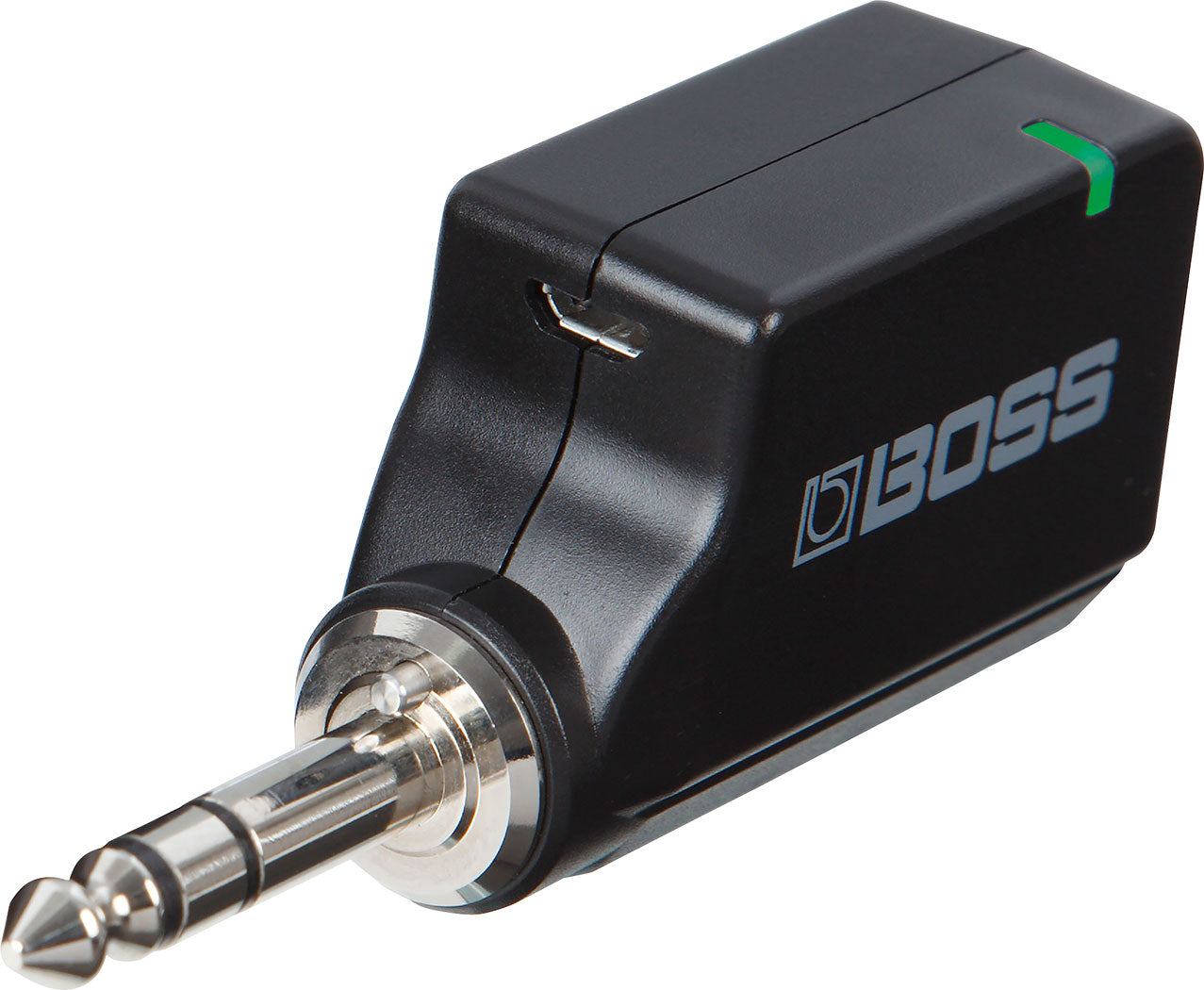

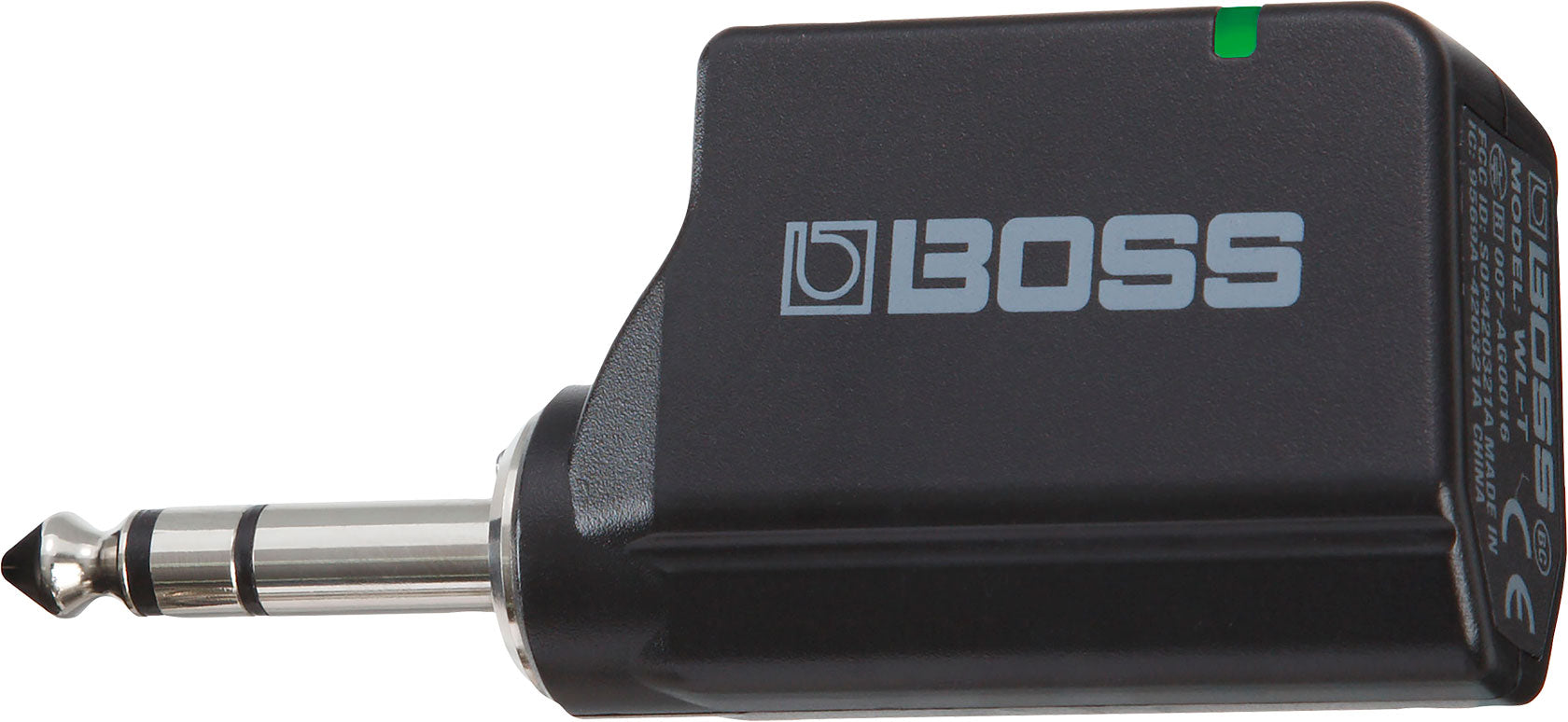

Boss WL-T Wireless Transmitter

The WL-T Wireless Transmitter is compatible with WL-series wireless systems and the Katana-Air wireless guitar amp, providing a spare to use if your original transmitter is lost or damaged. When pre-charged, it also functions as a backup transmitter for live performances. To charge the WL-T’s built-in battery and establish a connection to your BOSS wireless receiver, simply follow the same procedures used with the original transmitter included with your system.

The WL-T works with the following BOSS wireless products:
WL-20, WL-20L, WL-50, KATANA-AIR and WAZA-AIR



Note: The WL-T has no audio functionality as a standalone device. To transmit sound, it must be used in conjunction with the wireless receiver in one of the products listed above.

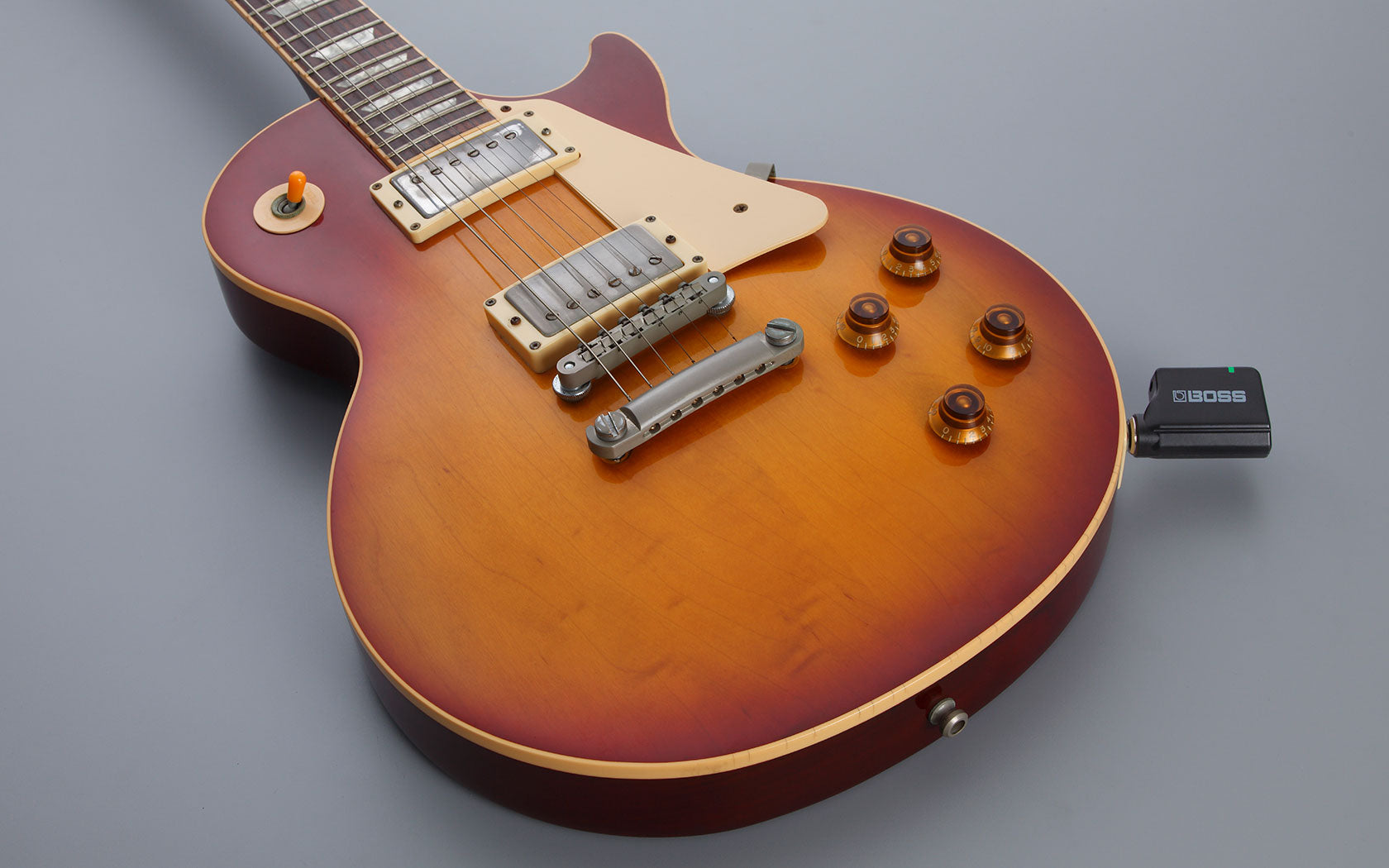

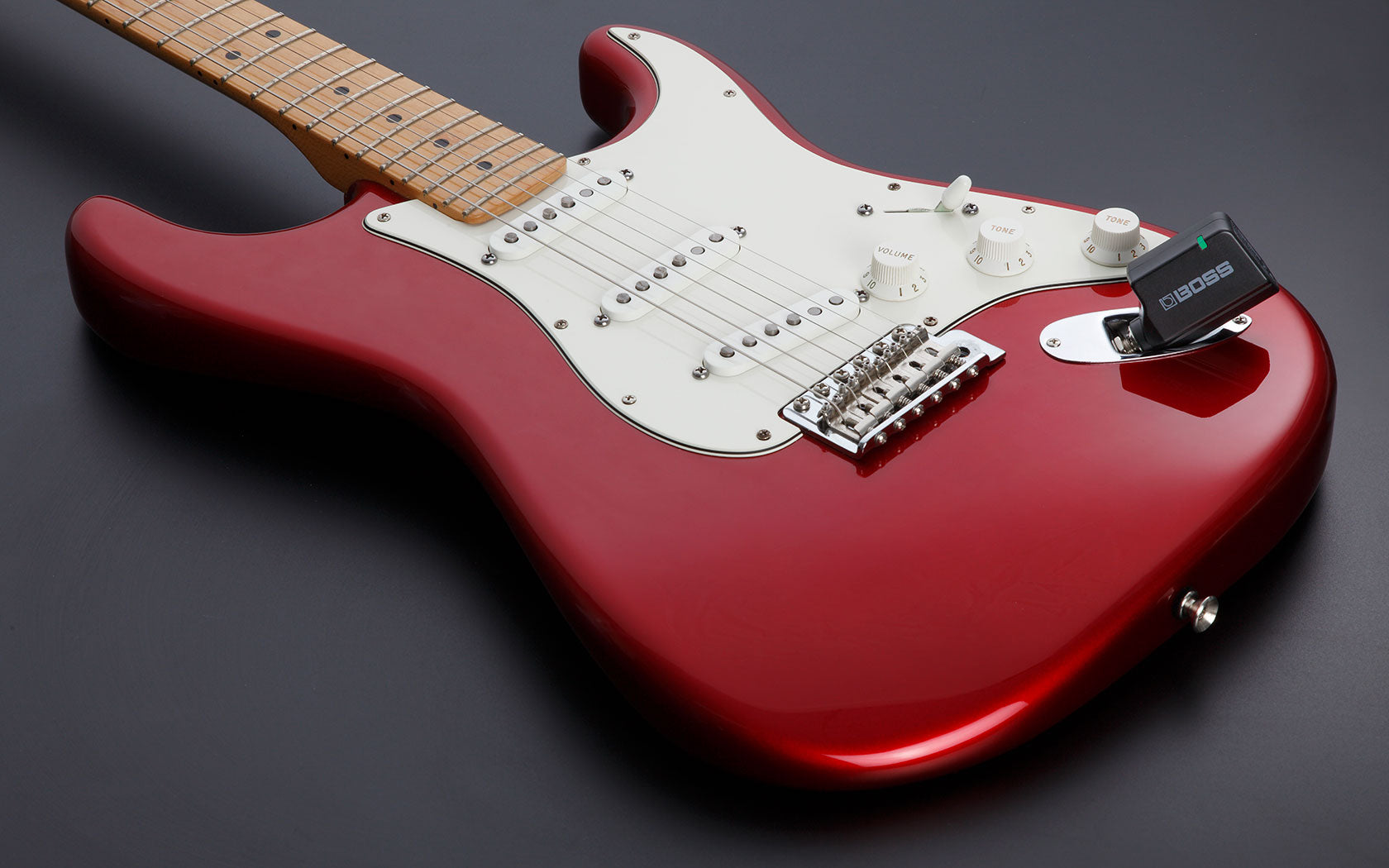

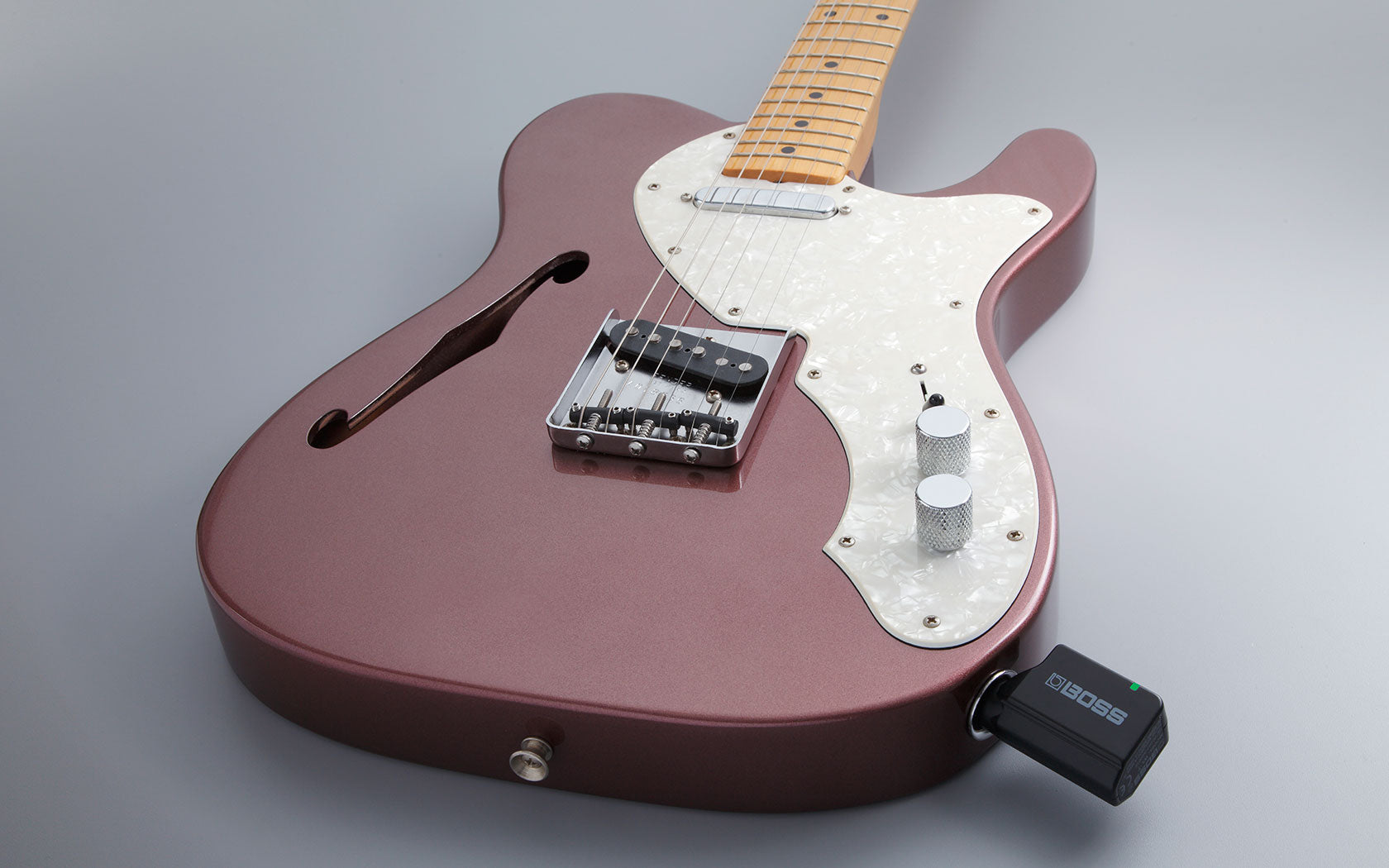

*Compatible guitars

Specifications

Nominal Input Level

-10 dBu (1 Mohms)

Indicator

BATTERY

Connectors

Input plug: 1/4-inch TRS phone type
DC IN 5 V port: USB Micro-B type

Power Supply

Rechargeable lithium-ion battery
Supplied from the DC IN 5 V port

Current Draw

350 mA

Battery charging time

Approximately 3 hours

Expected battery life under continuous use

Approximately 12 hours
* These figures will vary depending on the actual conditions of use.

Accessories

Owner's Manual

Applicable Models

KATANA-AIR
WAZA-AIR
WL-20
WL-20L
WL-50

Size and Weight

Width

87 mm
3-7/16 inches

Depth

22 mm
7/8 inches

Height

36 mm
1-7/16 inches

Weight

43 g
2 oz

* 0 dBu = 0.775 Vrms

*The specifications are subject to change without notice.
